14KETF10MPN Quick coupling self-venting

Safety coupling with a self-venting system, hose barb 10mm, nominal diameter 5,5, <12 bar, brass nickel plated, seal NBR
€38.64 *

Prices incl. VAT plus shipping costs

Delivery time: 1-2 workdays

Total: 38.64 *
Safety coupling with a self-venting system according to ISO C. Self-venting takes place during... more
Product information "14KETF10MPN Quick coupling self-venting"
Safety coupling with a self-venting system according to ISO C. Self-venting takes place during disconnection – no risk of pressurised hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely.
Series: 14
Seal: NBR
Series long: 14KE
Bore in mm: 5,5
Bore area in mm²: 25
Advantages: Das System erfüllt die Forderungen der ISO 4414. - erhöhter Sicherheitsstandard am Arbeitsplatz - kein Verkratzen der Arbeitsoberfläche durch die Kunststoffentriegelungshülse
Additional information: Reliable functioning can only be guaranteed in conjunction with original Parker Rectus plugs made of steel.
Working pressure: 12 bar maximum static working pressure with safety factor 4 to 1.
Working temperature: -20°C up to +60°C (NBR) depending on the medium.
Shut-Off: Quick coupling Self-Venting system
Connection: Hose barb 10mm
Connection description: Hose barb 10mm
Connection type: Hose barb
Material: Brass nickel plated
Material description: Brass CuZn39Pb3 2.0401 (except sleeve)
Seal description: Nitrite-butadiene rubber
Surface: nickel plated
Material connection: Brass nickel plated
Material valve body: Brass nickel plated
Material sleeve: Plastic
Material valve: Brass
Material spring snap ring: stainless steel AISI 301
Material balls/pins: Stainless steel AISI 420
Material seal: Perbunan®
Weight in kg: 0,1
Self-venting coupling: Yes
Safety locking system: Yes
Single-hand operation: Yes
Two-hand operation: No
Ball locking: Yes
Pin lock: Yes
Ultra-FLO-valve: No
Vacuum suitable: Yes
Water-resistant: No
Flat-sealing: No
Suitable breath / respiratory protection: No
Pressure eliminator: No
Hydraulics: No
Pneumatics: Yes
Standard product: No
Mould coupling: No

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

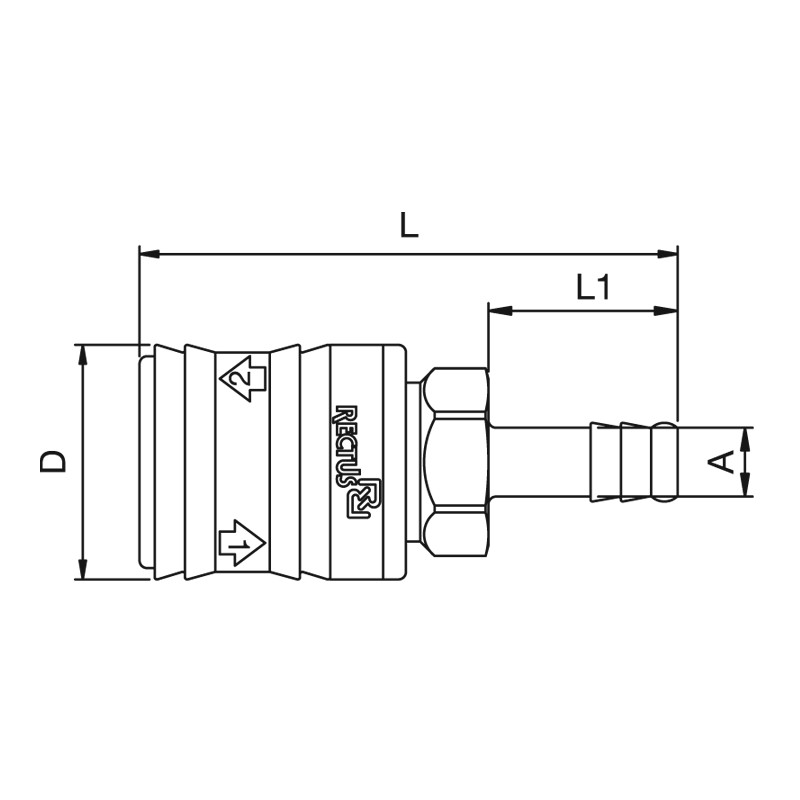

14KETF10MPN
Connection A: 10 mm
D mm: 31
L mm: 71
L1 mm: 25
SW mm: 22
