The MAN L pressure gauge belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.
Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting.
Though small in size, this pressure gauge, which is supplied in a metal casing, ensures accurate reading.
Available in the version for pipe-pipe connection with two push-in fittings, and in the version for thread-pipe connection with a brass nickel-plated male thread and a push-in fitting.
Though small in size, this pressure gauge, which is supplied in a metal casing, ensures accurate reading.
| Medium suitability: | Filtered, lubricated or unlubricated, compressed air. Lubrication, if used, must be continuous. |
| Working temperature: | -20 – +60 °C |
| Working pressure: | 12 bar |
| Precision: | ± 4 % vom Endausschlag |
| Recommended pipe: | Rilsan PA 11 – Nylon 6 – Polyamide 12 – Polypropylene. |
| Weight in kg: | 0,031 |
All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.
Available downloads:

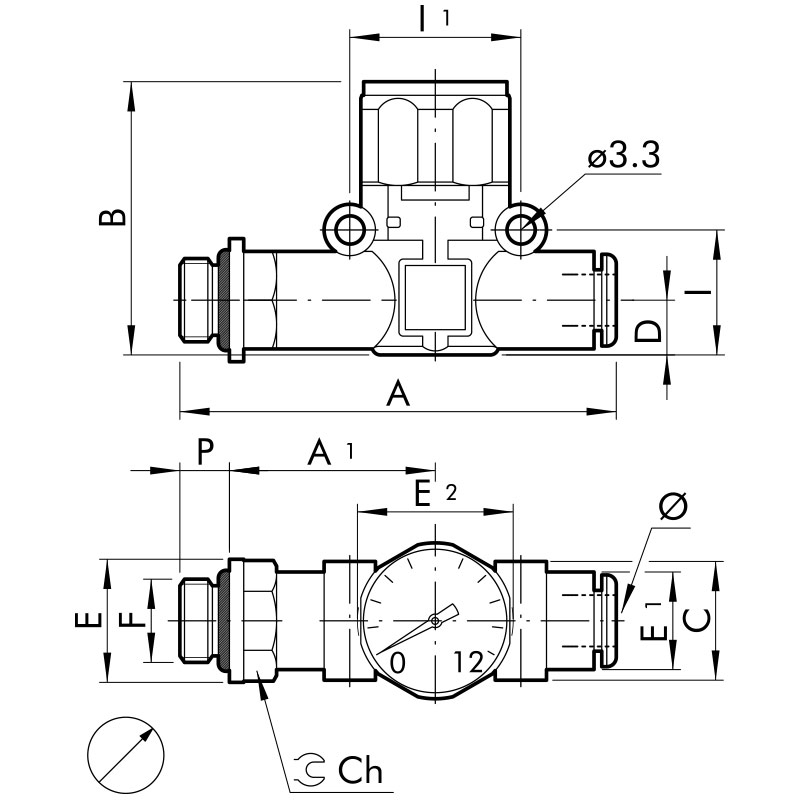

3D Modell
