TA38IW Pressure release valve

Pressure release valve female thread G 3/8, max. 250 bar
€289.48 *

Prices incl. VAT plus shipping costs

Delivery time: 52-53 Workdays

Total: 289.48 *
Produced for hydraulic systems where in line quick connect couplings are used. The system... more
Product information "TA38IW Pressure release valve"
Produced for hydraulic systems where in line quick connect couplings are used. The system pressure built up between the hydraulic unit and the coupling would not allow mechanical coupling.
Series: DEV
Valve: Brass
Seal: NBR
Series long: DEV
Maximum working pressure in bar: 250
Advantages: The Pressure Relief Valve can be mounted directly in the main inflow line so that all downstream pipe or hose lines where quick connect couplings or plugs are installed at the ends can be depressurised.
Working pressure: max. 250 bar
Working temperature: up to max. +90°C depending on the medium.
Connection type: Female thread
Material T-distributor: Steel, zinc-plated, passivated, sealed
Weight in kg: 0,56
Hydraulics: Yes

All information is intended as a non-binding guideline! We do not assume liability for any data selection not confirmed in writing.

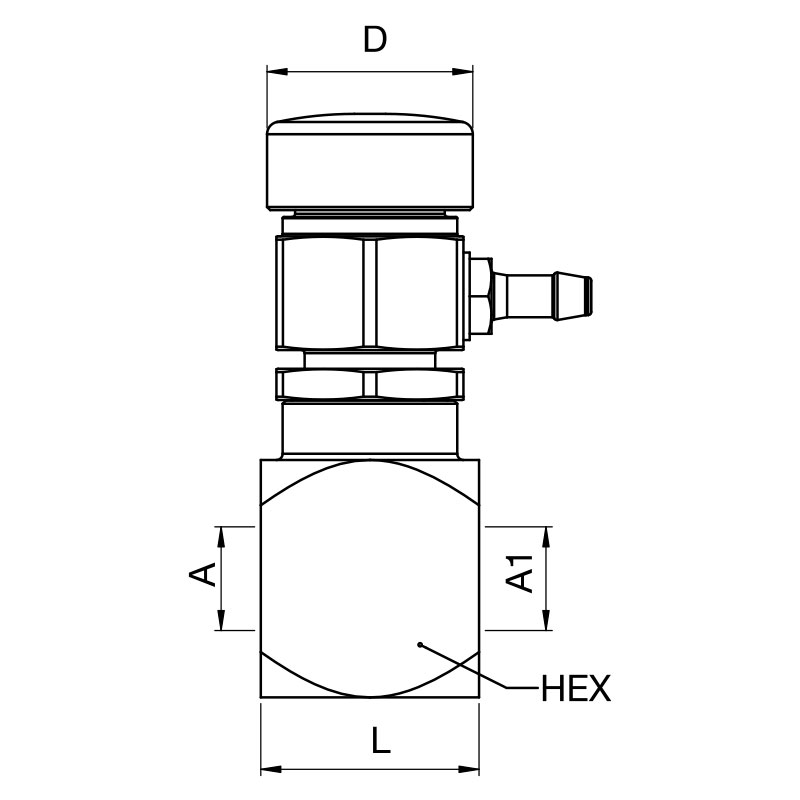

TA38IW
Connection A: G 3/8"
Connection A1: G 3/8"
D mm: 33
L mm: 60
SW mm: 28
